引子
本文会讨论 react 生态下的常用路由库,React-router 的版本迭代与源码架构,并尝试探讨路由思维的变化与未来。
什么是路由?
路由是一种向用户显示不同页面的能力。 这意味着用户可以通过输入 URL 或单击页面元素在 WEB 应用的不同部分之间切换。
版本
为了探究 react-router 设计思维,从 v3 开始有这几个版本:
react-router 3「静态路由」
react-router 4「动态路由」
react-router 5「意外发布」
@reach/router「简化轻量」
react-router 6「完全方案」
让我们逐个参与讨论。
react-router3:静态路由
静态路由的设计如下图所示:
React.render(( <Router> <Route path="/" component={Wrap}> <Route path="a" component={App} /> <Route path="b" component={Button} /> </Route> </Router>), document.body)特点:
路由集中在外层
页面路由配置通过
Route组件的嵌套而来布局和页面组件是完全纯粹的,它们是路由的一部分
v3 静态路由的设计对前端工程师来说,相对更易接受,因为前端工程师很多都接触过类似的路由配置设计,比如 express、rails 等框架。
虽然细节各有不同,但是思路大致相同——将 path 静态映射为渲染模块。
react-router4:动态路由
虽然 v3 以一种质朴无华的方式完成了基本的路由工作,但 react-router 的几个核心成员感觉现有的实现严重受 ReactAPI 的制约,并且实现方式也不够优雅。
于是,经过了激烈的思考与讨论,他们大胆地在 v4 中做出了比较激进的更迭。
React-router4 不再提倡静态路由的集中化架构,取之的是路由存在于布局和 UI 之间:
const App = () => ( <BrowserRouter> <div> <Route path="/a" component={A}/> </div> </BrowserRouter>);const A = ({ match }) => ( <div> <span>A</span> <Route path={match.url + '/b'} component={B} /> </div>);const B = () => <div>B</div>;我们来看以上代码的逻辑
一开始在 App 组件里,只有一个路由
/a用户跳转访问
/a时,渲染A组件,浏览器上出现字母 A,然后子路由/b被定义用户跳转访问
/a/b时,渲染B组件,浏览器上出现字母 B
我们可以看到,在 v4 中:
路由不再集中在一处
布局和页面的层叠不再由层叠的
<Route>组件控制,<Route>与组件为替换的关系布局和页面组件也不在是路由的一部分
这被称之为「动态路由」。
动态路由
传统静态路是在程序渲染前就定义好。
而动态意味着路由功能在应用渲染时才动态生成,这需要把路由看成普通的 React 组件,传递 props 来正常使用,借助它来控制组件的展现。这样,没有了静态配置的路由规则,取而代之的是程序在运行渲染过程中动态控制的展现。
动态路由将带来很大的好处。比如代码分割,也就是 react 常说的code splitting,由于不需要在渲染前决定结果,动态路由可以满足代码块的按需加载,这对于大型在线应用非常有帮助。

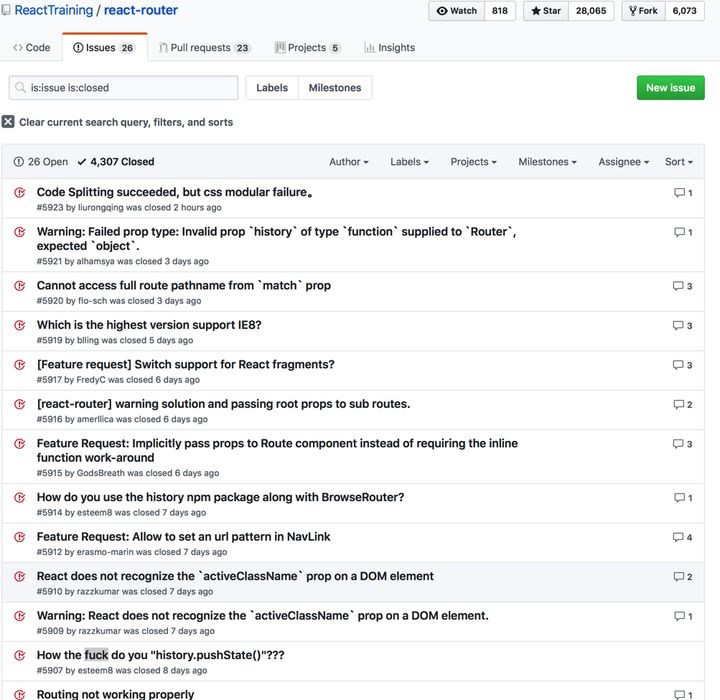

但是,毕竟路由对一个应用的架构来说非常重要,这么大的改变显得过于激进,这会改变以前开发者比较习惯的一些模式,由于这次的更新过于激进,遭到了开发者们的一些负面反馈:
这就要讨论到动态路由的缺点了:
不够直观,你无法从顶层知道程序中所有的路由,应用一层一层下来,搞不清最后显示出来什么,可读性很差
测试困难。组件中掺杂了路由逻辑,原本对针对组件的单元测试(功能层面)完全不需要知道路由的存在,而现在就要考虑了

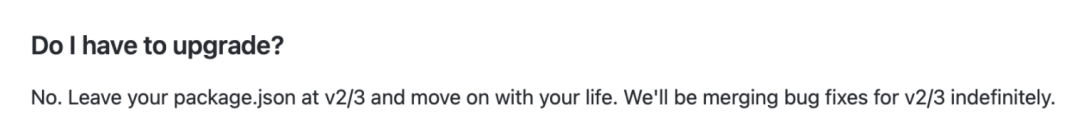

由于 React-router 团队保证 v3 会持续维护,所以当时很多开发者没有选择升级。
react-router5:沿用
原本只是计划发布 React Router 4.4 版本,但由于不小心误用了^字符,将依赖错误地写成 "react-router": "^4.3.1",导致报错。于是最后团队决定撤销 4.4 版本,直接改为发布 React Router v5。
react-router5 延续了动态路由的模式,但是提供了更加直观的写法:
export default function App() { return ( <Router> <Switch> <Route path="/about"> <About /> </Route> <Route path="/topics"> <Topics /> </Route> <Route path="/"> <Home /> </Route> </Switch> </Router> );}以上的写法,/about显示<About>组件,/topics显示<Topic>组件,根路由显示<Home>组件。
同时,v5 还允许你将路由配置作为一个 config 的 json 数据,写在组件外引入。
<Route>将作为父组件用于匹配路由,同时还有一系列辅助组件,比如<Switch>可以限制子元素进行单一的路由匹配。当然,这也会带来一定的
@reach/router:简洁

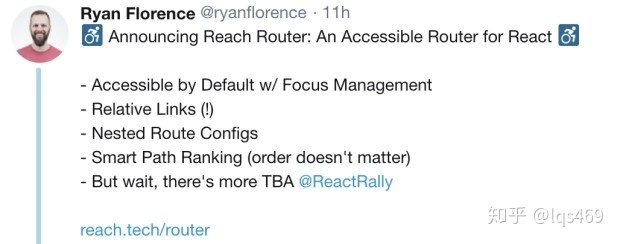

Reach-Router 是前 ReactRouter 成员 Ryan Florence 开发的一套基于 react 的路由控件。
那么已经有比较成熟的 ReactRouter 了, 为什么要” 再” 做一套 Router 呢?
Accessibility「易用」
相对链接的跳转方式
嵌套的路由配置
合适的路径优先 (顺序不会造成影响) 等等
优点:小而简
4kb,压缩后比
react-router小 40kb 左右,同时有更少的配置比起 react-router 需要 3 个包 (
history,react-router-dom,react-router-redux),reach-router只需要一个不需要在
store配置router相关信息不需要显示的使用
history基本一样的 api, 学习成本非常低
源码非常简洁,总共就 3 个文件,900 行
react-router6:终极方案
2021 年 11 月,react-router 6.0.0 正式版发布:
全部用 ts 重写
不以 '/' 开头,都是「相对路径」
路由按照最佳匹配选择,可以嵌套或者分散
v6 的设计可以说很大程度参照了 @reach/router,API 和 @reach/router v1.3 非常相似。因此,官方也宣称 v6 可以被看做 @reach/router 的 v2。
总体来说,v6 更像是一个以前版本的完善和整合,相对路径与嵌套分散的选择方式,让大家能够按个人喜好去构建路由。
源码
探讨完设计哲学与版本更迭,我们正式进入从 0 到 1 的源码学习。
本文对源码的探讨,就是以 v6 为基础(中间存在各种简化)。
我们先从 V6 的简易的实例开始:
import { render } from "react-dom";import { BrowserRouter, Routes, Route, Link,} from "react-router-dom";import App from "./App";import Expenses from "./routes/expenses";import Invoices from "./routes/invoices";const rootElement = document.getElementById("root");render( <BrowserRouter> <Routes> <Route path="/" element={<App />}> <Route path="expenses" element={<Expenses />} /> <Route path="invoices" element={<Invoices />} /> </Route> </Routes> <Link to="/invoices">Check Invoices</Link> </BrowserRouter>, rootElement);React-router 的结构主要分为四个模块:
History:
history「状态机」
负责路由的状态的管理和记录
Router:
<Router>「路由管理者」
负责自上到下传递路由数据
Route:
<Route>「路由端口」
路由对应组件配置
Link:
<Link />、<Navigate />「导航」
负责导航的跳转链接
让我们分别对各部分的源码进行拆分与讨论。
history
每个<Router>都会创建一个history对象,它记录了当前以及历史的路由位置。
react-router 使用了history库作为路由历史状态的管理模块:
history这个库可以让你在 JavaScript 运行的任何地方都能轻松地管理回话历史,history对象抽象化了各个环境中的差异,并提供了最简单易用的的 API 来给你管理历史堆栈、导航,并保持会话之间的持久化状态。——React Training 文档
这部分值得关注的源码:
工厂函数
createBrowserHistory等它们代码差别很小,不同的
router只有parsePath的入参不同。还有其它的差别,比如hashHistory增加了hashchange事件的监听等由于篇幅所限,这里我们只讨论
createBrowserHistoryhistory.push,用于基本的切换路由go/replace/forward/back也类似,不过push是history栈变化的基础history.listen添加路由监听器,每当路由切换可以收到最新的
action和location,从而做出不同的判断,BrowserRouter中就是通过history.listen(setState)来监听路由的变化,从而管理所有的路由history.block添加阻塞器,会阻塞
push等行为和浏览器的前进后退,阻止离开当前页面。且只要判断有blockers,那么同时会阻止浏览器刷新、关闭等默认行为。且只要有blocker,会阻止上面listener的监听
createBrowserHistory
我们先看工厂函数:
工厂函数的用途是创建一个history对象,后面的listen和unlisten都是挂载在这个 API 的返回对象上面的。
history.listen:这个是用在 Router 组件里面的,用来监听路由变化history.unlisten:这个也是在 Router 组件里面用的,是listen方法的返回值,用来在清理的时候取消监听的
export function createBrowserHistory( options: BrowserHistoryOptions = {}): BrowserHistory { // -----------------------------第一部分-------------------------------- const [index, location] = getIndexAndLocation(); function getIndexAndLocation(): [number, Location] { const { pathname, search, hash } = window.location; const state = window.history.state || {}; return [ state.idx, readOnly<Location>({ pathname, search, hash, state: state.usr || null, key: state.key || 'default' }) ]; } if (index == null) { index = 0; window.history.replaceState({ ...window.history.state, idx: index }, ''); } function handlePop() { const [nextIndex, nextLocation] = getIndexAndLocation(); const delta = index - nextIndex; go(delta) } window.addEventListener('popstate', handlePop); // ----------------------------第二部分------------------------------- const listeners = createEvents<Listener>(); const blockers = createEvents<Blocker>(); function createEvents<F extends Function>(): Events<F> { let handlers: F[] = []; return { get length() { return handlers.length; }, push(fn: F) { handlers.push(fn); return function() { handlers = handlers.filter(handler => handler !== fn); }; }, call(arg) { handlers.forEach(fn => fn && fn(arg)); } }; } listeners.call({ action, location }); blockers.call({ action, location, retry }); // ----------------------------第三部分------------------------------— const history: BrowserHistory = { get action() { return action; }, get location() { return location; }, createHref, push, // 重点 replace, go(delta: number) { window.history.go(delta); }, back() { go(-1); }, forward() { go(1); }, listen(listener) { // 重点 return listeners.push(listener); }, block(blocker) { // 重点 const unblock = blockers.push(blocker); if (blockers.length === 1) { window.addEventListener('beforeunload', promptBeforeUnload); } return function() { unblock(); if (!blockers.length) { window.removeEventListener('beforeunload', promptBeforeUnload); } }; } }; return history}我们可以将源码分为三部分:
第一部分「初始化和绑定」
通过
getIndexAndLocation获取初始当前路径的index和location,初始 index 为空,对应 history.state.idx 为 0。同时,
handlePop在window监听url的变化,在handleState里面进行触发。第二部分「发布订阅」
我们看到这部分是个标准的发布订阅模式:
createEvents是创建listeners与blockers的工厂函数,其返回了一个对象,通过push添加每个listener,通过call通知每个listener,代码中叫做handlerlisteners通过call传入action和location,这样每个listener在路由变化时就能接收到,从而做出对应的判断blockers,比listeners多了传入了一个retry,从而判断是否要阻塞路由,不阻塞的话需要调用函数retry第三部分「构建 history」
我们可以看看得到的
history对象这里我们重点关注:
push、listen、blockaction代表上一个修改当前location的action,POP/PUSH/REPLACE等action与location这两个属性都通过修饰符get获取,那么我们每次要获取就可以通过history.action或history.location。避免了只能拿到第一次创建的值,可以每次调用函数才能拿到。createHref作用是通过location返回新的href,to为字符串则返回to,否则返回pathname+search+hashback和forward都通过go实现
history.push
replace和push非常相似,区别在于replace将历史堆栈中当前location替换为新的,被替换的将不再存在,所以我们着重关注push
function push(to: To, state?: State) { const nextAction = Action.Push; const nextLocation = getNextLocation(to, state); function getNextLocation(to: To, state: State = null): Location { return readOnly<Location>({ ...location, ...(typeof to === 'string' ? parsePath(to) : to), state, key: createKey() }); } function retry() { push(to, state); } if (allowTx(nextAction, nextLocation, retry)) { // blockers的限制 const [historyState, url] = getHistoryStateAndUrl(nextLocation, index + 1); function getHistoryStateAndUrl( nextLocation: Location, index: number ): [HistoryState, string] { return [ { usr: nextLocation.state, key: nextLocation.key, idx: index }, createHref(nextLocation) ]; } window.history.pushState(historyState, '', url); try { globalHistory.pushState(historyState, '', url); } catch (error) { window.location.assign(url); } // 用try-catch的原因是因为ios限制了100次pushState的调用,catch后只能选择刷新页面 applyTx(nextAction); // 调用listeners }}allowTx下面blockers会讲到,用于阻塞路由applyTx下面listeners会讲到,用于调用监听器getNextLocation路由还没切换的时候,根据
history.push的to和state(新的 path 和状态)获取到新的locationto是字符串的话,会通过parsePath解析对应的pathname、search、hash(三者都是可选的,不一定会出现在返回的对象中)getHistoryStateAndUrl根据新的
location获取新的state和url因为是
push,这里的index自然是加一再调用
createHref,根据location生成url最后调用
history.pushState成功跳转页面,这个时候路由也就切换了
history.listener
const history: HashHistory = { // ... listen(listener) { return listeners.push(listener); }, // ...}function applyTx(nextAction: Action) { const [index, location] = getIndexAndLocation(); listeners.call({ action: nextAction, location });}function push(to: To, state?: State) { // replace // ... if (allowTx(nextAction, nextLocation, retry)) { // ... applyTx(nextAction); }}function handlePop() { if (blockedPopTx) { // ... } else { // ... if (blockers.length) { // ... } else { applyTx(nextAction); } }}function allowTx(action: Action, location: Location, retry: () => void): boolean { return ( !blockers.length || (blockers.call({ action, location, retry }), false) );}history.listen是一个标准的发布订阅模式,可以往history中添加listener,返回一个取消监听的可调用方法
listener在push、replace和handlePop三个函数中成功切换路由后调用每当成功切换路由,就会调用
applyTx(nextAction)来通知每个listenerallowTx的作用是判断是否允许路由切换,有blockers就不允许,也即是说,listener能否监听到路由变化,取决于当前页面是否被blockers阻塞了
history.block
const history: BrowserHistory = { // ... block(blocker) { const unblock = blockers.push(blocker); if (blockers.length === 1) { window.addEventListener('beforeunload', promptBeforeUnload); } return function() { unblock(); if (!blockers.length) { window.removeEventListener('beforeunload', promptBeforeUnload); } }; }};blockers 与listeners类似,区别在于:
添加第一个
blocker时会添加beforeunload事件只要
block了,那么我们刷新、关闭页面,通过修改地址栏输入url后enter都会触发移除的时候发现
blockers空了,那么就移除beforeunload事件
Router
应用顶层使用,为后代的Route提供Context的数据传递。
Router有很多种,区别在于路由在 url 上面存在的方式:
BrowserRouter「完整路由」,路由路径在 url 上完整对应,需要服务端支持HashRouter「哈希路由」,路径为 url 里#后面的部分StaticRouter「静态路由」,无状态:不改变路径地址、不记录历史栈
还有MemoryRouter(在内存中保存)、NativeRouter(在ReactNative中使用)等,他们使用的history状态机也不一样。
BrowserRouter
篇幅所限,这里我们主要讨论最通用的BrowserRouter:
使用
browserHistory需要服务端支持
原因:如果只给用户提供 cdn 静态 html 文件,强制刷新或通过 “复杂路径” 访问时,无法找到路径下匹配的资源
对于
BrowserRouter的应用,服务端渲染完成后,之后的路由由BrowserRouter独立完成解析将相关的路径都转发到静态文件上,静态文件执行后,会读取当前的浏览器路径并正确渲染对应的组件
作为应用的最外层的容器组件,BrowserRouter源码如下:
export function BrowserRouter({ basename, children, window}) { const history = useRef<BrowserHistory>(); if (historyRef.current == null) { historyRef.current = createBrowserHistory({ window }); } const history = historyRef.current; const [state, setState] = useState({ action: history.action, location: history.location }); useLayoutEffect(() => { history.listen(setState) }, [history]); return ( <Router basename={basename} children={children} action={state.action} location={state.location} navigator={history} /> );}可以看到是,是一个构建了history的<Router>组件的封装
Router初始化会生成history实例,history一般变化的就是action和location,并把setState放入对应的listeners,那么路由切换就会setState了。Router其接收的属性的变化的,就是路由相关的变化(action、location),这部分路由被存到Context。子组件作为消费者,就可以对页面进行修改,跳转,获取这些数值。
我们来看Router:
export function Router({ action = Action.Pop, basename: basenameProp = "/", children = null, location: locationProp, navigator, static: staticProp = false}: RouterProps): React.ReactElement | null { // ... return ( <NavigationContext.Provider value={navigationContext}> <LocationContext.Provider children={children} value={{ action, location }} /> </NavigationContext.Provider> );}const { basename, navigator } = React.useContext(NavigationContext);const { location } = React.useContext(LocationContext);export function useLocation(): Location { return React.useContext(LocationContext).location;}Router最后返回了两个Context.Provider,中间就是针对于location的处理
Route「路由端口」
我们直接看Routes和Route的源码:
export function Routes({ children, location}: RoutesProps): React.ReactElement | null { return useRoutes(createRoutesFromChildren(children), location);}export function Route( _props: PathRouteProps | LayoutRouteProps | IndexRouteProps): React.ReactElement | null { invariant( false, `A <Route> is only ever to be used as the child of <Routes> element, ` + `never rendered directly. Please wrap your <Route> in a <Routes>.` );}可以发现
Routes实际上就是useRoutes的包装Route实际上没有render,只是作为Routes的子组件存在
我们只需要着重研究createRoutesFromChildren与useRoutes:
export function createRoutesFromChildren( children: React.ReactNode): RouteObject[] { const routes: RouteObject[] = []; React.Children.forEach(children, element => { if (!React.isValidElement(element)) return; if (element.type === React.Fragment) { routes.push.apply( routes, createRoutesFromChildren(element.props.children) ); return; } const route: RouteObject = { caseSensitive: element.props.caseSensitive, element: element.props.element, index: element.props.index, path: element.props.path }; if (element.props.children) { route.children = createRoutesFromChildren(element.props.children); } routes.push(route); }); return routes;}我们看到,createRoutesFromChildren作用如下:
递归收集子元素
Route上的属性,最终返回一个嵌套数组支持
React.Fragment创建一个
routes路由配置
export function useRoutes( routes: RouteObject[],): React.ReactElement | null { // --------------------------------第一段------------------------------------ const { matches: parentMatches } = React.useContext(RouteContext); const routeMatch = parentMatches[parentMatches.length - 1]; const parentParams = routeMatch ? routeMatch.params : {}; const parentPathnameBase = routeMatch ? routeMatch.pathnameBase : "/"; // --------------------------------第二段------------------------------------ let location = useLocation(); const pathname = location.pathname || "/"; const remainingPathname = parentPathnameBase === "/" ? pathname : pathname.slice(parentPathnameBase.length) || "/"; const matches = matchRoutes(routes, { pathname: remainingPathname }); // --------------------------------第三段------------------------------------- return _renderMatches( matches && matches.map(match => Object.assign({}, match, { params: Object.assign({}, parentParams, match.params), pathname: joinPaths([parentPathnameBase, match.pathname]), pathnameBase: joinPaths([parentPathnameBase, match.pathnameBase]) }) ), parentMatches );}useRoutes参数的routes嵌套数组就是createRoutesFromChildren返回的路由配置,通过路由配置匹配到对应的 route 元素进行渲染:
第一段:获取
parentMatches最后一项「routeMatch」Routes中,上一次useRoutes匹配后得到的matches会作为下一层的parentMatches,如果 match 了,获取匹配的params、pathname等各种信息第二段:通过当前 Routes 的相对路径
remainingPathname和routes匹配到对应的matches这里最复杂的部分,也是 react-router 最精华的部分,就是匹配路由,而这部分的逻辑在
matchRoutes上:export function matchRoutes( routes: RouteObject[], locationArg: Partial<Location> | string, basename = "/"): RouteMatch[] | null { const location = typeof locationArg === "string" ? parsePath(locationArg) : locationArg; const pathname = stripBasename(location.pathname || "/", basename); if (pathname == null) { return null; } const branches = flattenRoutes(routes); rankRouteBranches(branches); let matches = null; for (let i = 0; matches == null && i < branches.length; ++i) { matches = matchRouteBranch(branches[i], pathname); } return matches;}matchRoutes的作用是通过当前相对路径和路由配置匹配到对应的matchesroutes有可能是多维路由配置,那么扁平化的过程中,会收集每个路由的属性作为routeMeta,收集过程是一个深度优先遍历,routesMeta的长度等于路由嵌套自身所处层数对扁平后之后的路由进行排序,根据权重排序每个分支,如果权重相等才去比较
routesMeta的每个自权重直到
matches有值 (意味着匹配到,那么自然不用再找了)或遍历完才跳出循环而
matchRouteBranch会通过每个部分的routesMeta,来看看是否能从头到尾匹配到相应的路由,只要有一个不匹配,就返回 nullroutesMeta最后一项是该次路由自己的路由信息,前面项都是parentMetas第三段:通过
_renderMatches渲染上面得到的匹配元素终于拿到「路由匹配元素」matches 了,那么就要根据匹配项来渲染。
function _renderMatches( matches: RouteMatch[] | null, parentMatches: RouteMatch[] = []): React.ReactElement | null { if (matches == null) return null; return matches.reduceRight((_, match, index) => { return ( <RouteContext.Provider children={match.route.element} value={{ outlet, matches: parentMatches.concat(matches.slice(0, index + 1)) }} /> ); }, null as React.ReactElement | null);}_renderMatches会根据匹配项和父级匹配元素parentMatches从右到左,从子元素向父元素,渲染
RouteContext.Provider
Link、Switch 等「导航」
Link组件功能就是实现一次跳转直接使用一般的
a标签,会使页面刷新,所以需要借助historyhistory.pushState只会改变history状态,不会刷新页面history.pushState的时候,不会触发popstate事件,所以history里面的回调不会自动调用,当用户使用history.push的时候,我们需要手动调用回调函数
我们来看看源码:
export default function Link({ to, ...rest}) { return ( <RouterContext.Consumer> {context => { const { history } = context; const props = { ...rest, href: to, onClick: event => { event.preventDefault(); history.push(to); } }; return <a {...props} />; }} </RouterContext.Consumer> );}我们看到,<Link>只是渲染了一个没有默认行为的a标签,其跳转行为由context传入的history.push实现。
未来:Remix
remix 是由 react-router 原班人马打造,并获得三百万美元融资的 ts 全栈明星开发框架,笔者认为 remix 作为一个全新的全栈的解决方案值得关注,其路由功能非常灵活高效。
“我们经常将 Remix 描述为 "React Router 的编译器",因为有关 Remix 的所有内容都利用了嵌套路由。”
官网对 remix 的介绍如下:
一个编译器
一个有着 HTTP 处理器的服务端
一个服务端框架
一个浏览器端框架

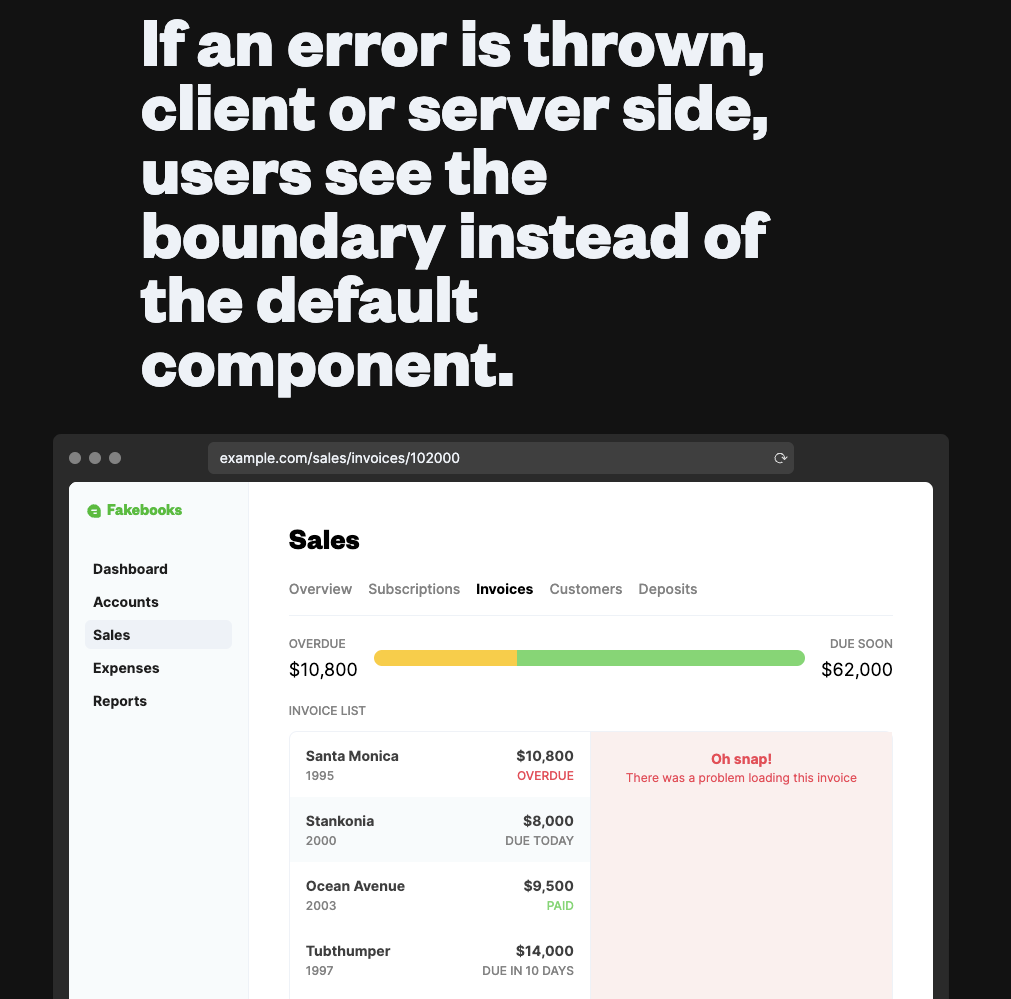

remix 可以干掉骨架屏等加载状态,所有资源都可预加载,而且管理后台,对于数据的加载、嵌套数据或者组件的路由、并发加载优化做得很好,并且异常的处理已经可以精确到局部级别:

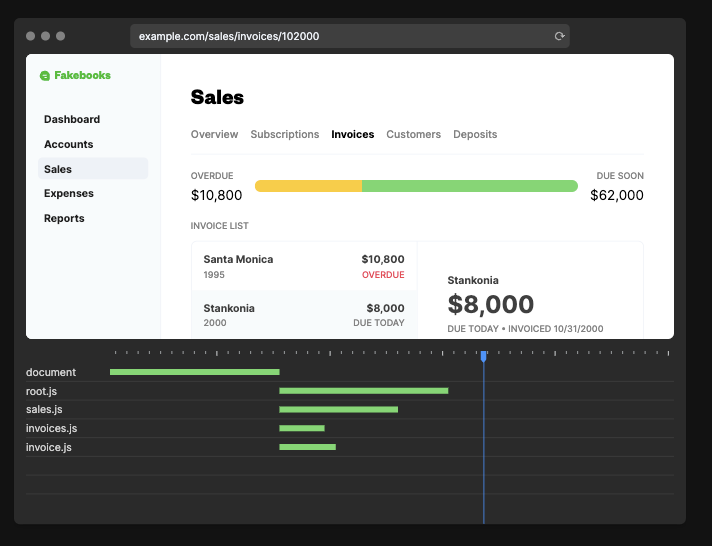

remix 告别瀑布式的方式来获取数据,数据获取在服务端并行获取,生成完整 HTML 文档,类似 React 并发特性:
相比之下,Next.js 更像是一个静态网站生成器。Gatsby 相比下则门槛过高,需要一定的 GraphQL 基础。
同时,客户端与服务端能有一致的开发体验,客户端代码与服务端代码写在一个文件里,无缝进行数据交互,同时基于 TypeScript,类型定义可以跨客户端与服务端共用,路由也可以同步,实现一个组件化、路由为首的全栈模型。
结尾
我们看到,随着 Web 技术思维的变革,最早的渐进式应用正在走向越来越强的一体化,大前端、泛前端的思维性质越来越浓厚。
而服务端技术则通过云技术,走向了 SaaS,容器化这样更灵活、成本更低的道路上,旨在为应用端提供更便捷的开发。
在未来的 Web3 浪潮下,由于公链的存在,「胖协议 + 瘦应用」会是大势所趋,越来越敏捷和低成本的开发会更为重要。
路由作为前后端,交互最紧密的桥梁,会是一个关键的变革区域,或许有天我们可以看到,Web 技术通过路由,实现了真正的前后端的统一,走向了人人都可开发的大全栈未来。
