时间过的好快，参加公司的新项目研发快一年了，五一机器人项目首秀，我们遇到了高并发集中下单情景，然后海量数据处理场景来了，给我在后端领域的高并发实践业务上画上了漂亮的一笔经验。人都是在磨练中成长，我很感谢这次给我的机会，虽然有点累，但也有点小成就。正好现在有空，我先聊聊首秀后给领导们做的大屏数据展示吧，领导等着看漂亮数据呢！
大屏重点是贼啦炫酷的动态特效加持
业务核心运营场景：各大地上地下停车场
这里我用的是three.js去实现的实际业务场景的场站模拟三维图，废话不多说，直接上图吧！先说一下，这里截图是看起来像 2 维，但实际是 3 维的，可以滑动翻转地图的。
截屏 2024-05-07 18.35.07.png

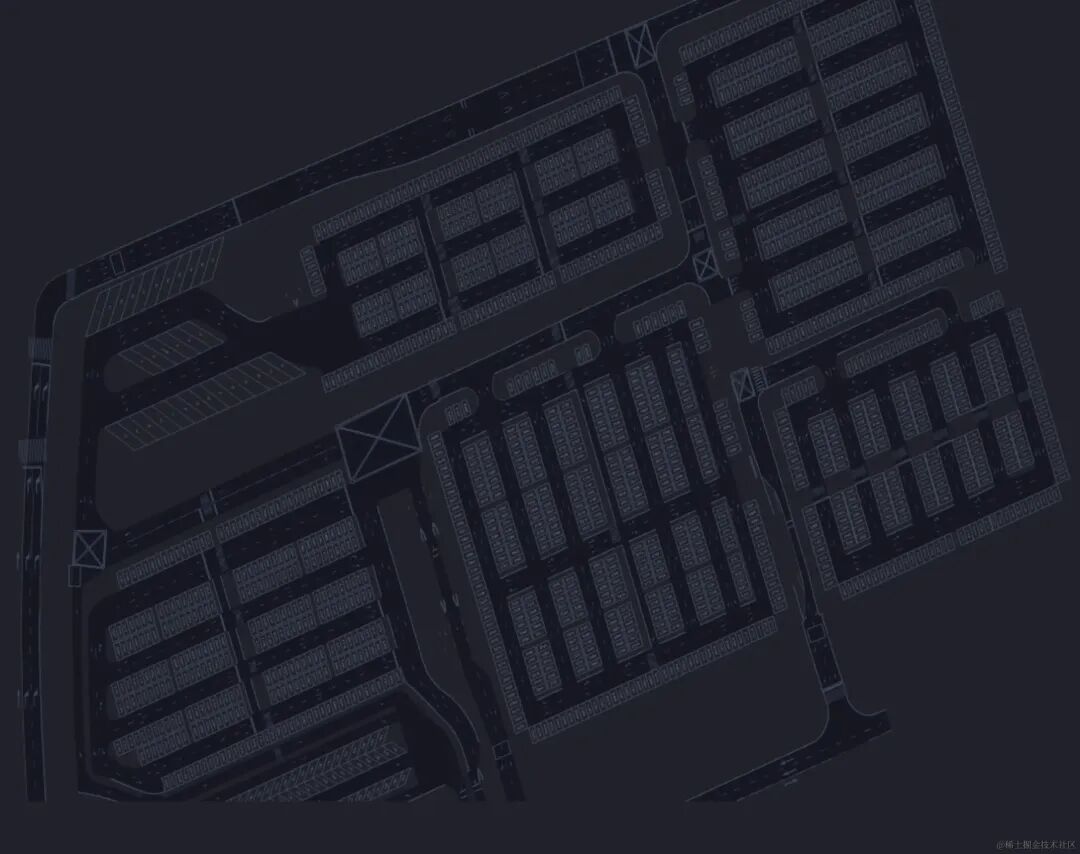

如图所示，这是 p4 停车场的全景图，整个停车场的鸟瞰图一览无余，可以滚动鼠标放大看 ====》
这是我用 three.js 渲染的每个停车位的车位标记，这里记录了这个车场的每个车位的坐标点，方便后期，观察我们投放的 100 台机器人智能驾驶实时模拟。听起来是不是很牛逼 plus？我告诉你，事情没那么简单！由于数据太多，既要有 3D-map，也要有实时动态数据滚动展示和各种 echarts 图表，比如：
ps：不好意思，本人还要严格遵守劳动合同执行公司数据保密，相关数据已经打码。
然后一堆实时数据数据和图上来后，不出意外的意外来了，性能出现了问题，我遇到了内存泄漏的情况。这还怎么继续二期的机器人动态运行场景研发呢？别慌，一步一步排查代码。
1. 先介绍下大屏顶部的总数统计动态数字翻牌器
这里我用了第三方插件：动态数字翻牌器vue-count-to, 只要有数据变化，就会实时看到动态增长的效果
首先要在框架中安装npm install vue-count-to，并在项目入口文件中引入
js复制代码import CountTo from 'vue-count-to';Vue.use(CountTo)new Vue({ el: '#app', router, store, render: h => h(App)})实际业务开发模块中代码：
js复制代码 <count-to class="count-to" :startVal="0" //开始数值 :endVal="687573.74" //结束数值 :duration="500000" //动态变化的时间设定 :decimals="1" //每次动态增长的数量 ></count-to>2. 然后在大屏的左侧，我写了一个实时从下到上无限滚动的动态订单列表，可以让领导看到最新的订单情况。
js复制代码<template> <div class="scrolling-list" :style="{ transform: `translate(0px,-${scrollTop}px)` }"> <ul ref="scrollItemBox"> <li v-for="(item, index) in items" :key="index" class="item-li"> <div><span class="name">订单编号：</span><span class="content"><i class="el-icon-receiving"> {{ item.order_id }}</i></span></div> <div><span class="name">订单金额：</span><span class="content"><i class="el-icon-s-finance" style="color:#1989fa" > {{ item.pre_total_amount }}</i></span><span class="name">手机号：</span><span class="content"><i class="el-icon-mobile-phone" style="color:#1989fa"> {{ item.phone }}</i></span></div> <div><span class="name">车牌号：</span><span class="content"> <i class="el-icon-truck" style="color:#1989fa"> {{ item.vehicle_no }}</i></span><span class="name">车位号：</span><span class="content"><i class="el-icon-map-location" style="color:#1989fa"> {{ item.target_slot_no }}</i></span></div> <div><span class="name">订单来源：</span><span class="content">{{ item.order_from == 1 ? '小程序' : 'APP' }}</span><span class="name">下单时间：</span><span class="content"><i class="el-icon-time"> {{ item.created_at }}</i></span></div> </li> </ul> <div v-html="copyHtml"></div> </div></template><script export default { data() { return { name: "InfiniteScroll", scrollTop: 0, //列表滚动高度 speed: 15, //滚动的速度 copyHtml: '', items:[], intervalId: null }; }, mounted() { this.initScroll() }, beforeDestroy() { // 清除定时任务 clearInterval(this.intervalId); }, methods: { initScroll() { this.$nextTick(() => { this.copyHtml = this.$refs.scrollItemBox.innerHTML this.startScroll() }) }, // 开始滚动 startScroll() { setInterval(this.scroll, this.speed); }, // 滚动处理方法 scroll() { this.scrollTop++ // 获取需要滚动的盒子的高度 let scrollItemBox = this.$refs.scrollItemBox?.offsetHeight || 1000 // 当判断滚动的高度大于等于盒子高度时，从头开始滚动 if (this.scrollTop >= scrollItemBox) { this.scrollTop = 0 } } } }; </script>3. 然后在大屏的右侧，用echarts写了两个饼图和折线图表，可以直观的的看到数据统计
js复制代码export const timeStaticsOption = (xData,tipsArr) => { return { title: { text: '', subtext:'当天时间段充电订单数', subtextStyle:{ color:'#fff', } }, tooltip: { trigger: 'axis', axisPointer: { type: 'cross' } }, xAxis: { type: 'category', data: xData, boundaryGap: false, axisLine: { show: false, lineStyle: { color: '#73B131', type: 'dashed' } }, }, yAxis: { type: 'value', axisPointer: { snap: true } }, series: [ { name: '时间段充电订单数', type: 'line', smooth: true, data: tipsArr, } ] }}export const botDataPieEcharts = (total,a,b)=>{ console.log(total,a,b) return { title: { text: '', subtext: "Bot总数:"+ total+ '台', left: 'center', subtextStyle:{ color:'#fff', } }, tooltip: { trigger: 'item' }, // legend: { // orient: 'vertical', // left: 'left' // }, series: [ { name: 'Bot数量', type: 'pie', radius: '50%', data: [ { value: a, name: '在线:'+ a +'台' }, { value: b, name: '空闲:'+ b +'台'}, ], emphasis: { itemStyle: { shadowBlur: 10, shadowOffsetX: 0, shadowColor: 'rgba(0, 0, 0, 0.5)' } } } ] }}4. 最后也是最耗性能的部分，用three.js写的停车场模拟实景鸟瞰图，3d-map
这里我直接把相关的方法和类，全部封装好，单独引入文件，用到以下文件，
js复制代码import '../public/threejs/controls/OrbitControls.js'; import '../public/threejs/lines/LineSegmentsGeometry.js';import '../public/threejs/lines/LineGeometry.js';import '../public/threejs/lines/LineMaterial.js';import '../public/threejs/lines/LineSegments2.js';import '../public/threejs/lines/Line2.js';在业务中相关代码写好工具方法，
js复制代码import myWorker from './map.worker';import FONT_JSON_DATA from './helvetiker_bold.typeface.json';class basicThree { constructor(props) { this.from = props.from this.callbackSlotNo = props.callback console.log(props, 'props') this.LineGeometry // three 3要素 this.renderer; //渲染器 this.camera; //摄像头 this.scene; //场景 //光源 this.ambientLight; //环境光 this.pointLight; //平行光 this.DirectionalLight //触屏开始时间 this.touchTime = 0 //摄像头控制 this.controls; this.init() this.onmousedbclick = this.onMouseDblclick.bind(this); this.selectObject this.rawOption this.materialLine = Object() this.box = document.createElement("div") this.donX this.donY this.dataNumber this.originX; // 偏移量x坐标 this.originZ; // 偏移量z坐标 this.thinLine; this.wideLine; // 定义模型组 this.initModalGroup(); this.mapParams; this.drawModalFunc = { '0': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 0 }, '1': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 0 }, '2': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 2 }, '3': { 'func': this.initNoAndArea.bind(this), 'group': null, 'z': 3 }, '4': { 'func': this.basicWall.bind(this), 'group': 'barrier_group', 'z': 3 }, '5': { 'func': this.initSlotLine.bind(this), 'group': 'initSlotLine_group', 'z': 3 }, '6': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 3 }, '7': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 3 }, '8': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 3 }, '9': { 'func': this.initSlotLine.bind(this), 'group': 'initSlotLine_group', 'z': 3 }, '10': { 'func': this.initSlotLine.bind(this), 'group': 'initSlotLine_group', 'z': 3 }, '11': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 3 }, '13': { 'func': this.initSlotLine.bind(this), 'group': 'initSlotLine_group', 'z': 3 }, '14': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 3 }, '16': { 'func': this.RoadLineSigns.bind(this), 'group': 'RoadLineSigns_group', 'z': 3 }, '1001': { 'func': this.initSlotLine.bind(this), 'group': 'initSlotLine_group', 'z': 4 } } //字体loader this.FontLoader; this.getFontLoaderInit() } init() { this.initScene() this.initCamera() this.initRender() this.orbitHelper() //摄像头辅助 this.animate() window.onresize = this.onWindowResize.bind(this); } initScene() { //场景 this.scene = new THREE.Scene(); } // // 三维坐标系辅助 axesHelper() { this.scene.add(new THREE.AxesHelper(200)) } initCamera() { //摄像头 var width = window.innerWidth; //窗口宽度 var height = window.innerHeight; //窗口高度 var k = width / height; //窗口宽高比 var s = 30; //三维场景显示范围控制系数，系数越大，显示的范围越大 var camera = new THREE.OrthographicCamera(-s * k, s * k, s, -s, 1, 1000); camera.position.set(0, 200, 0); //设置相机位置 camera.lookAt(this.scene.position); //设置相机方向(指向的场景对象) this.camera = camera; } initRender() { //渲染器 let renderer = new THREE.WebGLRenderer({ antialias: true }); let container = document.getElementById('room'); renderer.setSize(container.offsetWidth, container.offsetHeight); container.appendChild(renderer.domElement); //告诉渲染器需要阴影效果 // renderer.shadowMap.enabled = true; // renderer.shadowMap.type = THREE.PCFSoftShadowMap; renderer.setClearColor(new THREE.Color('#212129')); this.renderer = renderer; } initModalGroup() { this.slot_no_group = null; // 车位号组 this.slot_area_group = null; // 车位方框组 this.barrier_group = null; // barrier组 this.initSlotLine_group = null; this.RoadLineSigns_group = null; } initData(option, index, mapParams, callback, originX, originZ) {//初始化渲染 this.slot_no_group = new THREE.Group(); // 车位号组 this.slot_area_group = new THREE.Group(); // 车位方框组 this.barrier_group = new THREE.Group(); // barrier组 this.initSlotLine_group = new THREE.Group(); this.RoadLineSigns_group = new THREE.Group(); this.originX = originX; this.originZ = originZ; var data = option['entities_groups']; this.rawOption = option; this.mapParams = mapParams; console.log(data); // initSlotLine-画线，RoadLineSigns-画区域，initSlotNumber-车位号，slotAreaRegion-画车位区域(专用)，initSlotArea-画块，basicWall-画块(墙体) let dataType = null for (let i = 0; i < data.length; i++) { if (data[i]['entities']) { dataType = data[i]['entities'][0]['type'] + ''; if (this.drawModalFunc[dataType]) { this.drawModalFunc[dataType]['func'](data[i]['entities'], this[this.drawModalFunc[dataType]['group']], this.drawModalFunc[dataType]['z'], true, mapParams['bg'][data[i]['name']]) } } } if (callback) callback() } // 清空模型 clearModal() { if (this.scene && this.scene.children) { this.initModalGroup(); if (this.wideLine && this.wideLine.geometry) { this.wideLine.geometry.dispose(); this.wideLine.material.dispose(); this.scene.remove(this.wideLine); } if (this.thinLine && this.thinLine.geometry) { this.thinLine.geometry.dispose(); this.thinLine.material.dispose(); this.scene.remove(this.thinLine); } let xlType = this.scene.children.filter(function (obj) { return obj.type == 'Group' }) for (let i = 0; i < xlType.length; i++) { for (let j = 0; j < xlType[i]['children'].length; j++) { if (xlType[i]['children'][j]['type'] == 'Mesh') { xlType[i]['children'][j].geometry.dispose(); xlType[i]['children'][j].material.dispose(); } } this.scene.remove(xlType[i]); } } } // 清除 type 类型的 obj clearSlot(type) { if (this.scene && this.scene.children) { this.scene.children.forEach(obj => { if (obj.userData && obj.userData.slot == type) { this.scene.remove(obj); } if (obj.children.length > 0) { obj.children.forEach(item => { if (item.userData && item.userData.slot == type) { this.scene.remove(obj); } }) } }) } } /** * 清除模型，模型中有 group 和 scene,需要进行判断 * @param scene * @returns */ clearScene() { // 从scene中删除模型并释放内存 if (this.scene.length > 0) { for (var i = 0; i < this.scene.length; i++) { var currObj = this.scene[i]; // 判断类型 if (currObj instanceof THREE.Scene) { var children = currObj.children; for (var i = 0; i < children.length; i++) { deleteGroup(children[i]); } } else { deleteGroup(currObj); } this.scene.remove(currObj); } } console.log(this.scene, '清空后的 scene') } // 删除group，释放内存 deleteGroup(group) { //console.log(group); if (!group) return; // 删除掉所有的模型组内的mesh group.traverse(function (item) { if (item instanceof THREE.Mesh) { item.geometry.dispose(); // 删除几何体 item.material.dispose(); // 删除材质 } }); } initMap(option, index, mapParams, callback, originX, originZ) { this.clearScene() this.initData(option, index, mapParams, callback, originX, originZ) } initLight() { var light = new THREE.DirectionalLight("#ffffff", 0.28, 100); light.position.set(0, 1, 1200); //default; light shining from top light.castShadow = true; // default false this.scene.add(light); //环境光 // var ambient = new THREE.AmbientLight("#ffffff"); // this.scene.add(ambient); // 点光源 var point = new THREE.PointLight(0xffffff); point.position.set(0, 200, 0); //点光源位置 this.scene.add(point); //点光源添加到场景中 //环境光 var ambient = new THREE.AmbientLight(0x888888); this.scene.add(ambient); } initModel() { this.initLight() // this.axisHelper() // 确认页面需要点选车位 const _self = this if (_self.from === 'confirm') { document.getElementById('room').addEventListener('touchstart', function(){ _self.touchTime = Date.now() }, false); document.getElementById('room').addEventListener('touchend', _self.onmousedbclick, false); } } orbitHelper() { //创建摄像头辅助 let controls = new THREE.OrbitControls(this.camera, this.renderer.domElement); controls.target = new THREE.Vector3(0, 0, 0);//控制焦点 controls.autoRotate = false;//将自动旋转关闭 // controls.enableRotate = false; // controls.minPolarAngle = -Math.PI/2; // controls.maxPolarAngle = Math.PI/2; // controls.minAzimuthAngle = 0; // controls.maxAzimuthAngle = 0; // controls.maxZoom = 20; // controls.minZoom = 1; new THREE.Clock(); this.controls = controls; } gridHelper() { // 创建网格辅助 var gridHelper = new THREE.GridHelper(20, 20, 0x404040, 0x404040); this.scene.add(gridHelper); } statsHelper() { //性能插件 this.stats = new Stats(); document.body.appendChild(this.stats.dom); } axisHelper() { //坐标轴辅助 var helper = new THREE.AxisHelper(3000); this.scene.add(helper); } onWindowResize() { //自适应 var parent = document.getElementById("room"); this.camera.aspect = parent.clientWidth / parent.clientHeight; this.camera.updateProjectionMatrix(); this.renderer.setSize(parent.clientWidth, parent.clientHeight); } render() { //渲染 if (this.stats) this.stats.update(); this.renderer.render(this.scene, this.camera); } animate() { this.render() requestAnimationFrame(this.animate.bind(this)); // if (this.selectObject != undefined && this.selectObject != null) { // this.renderDiv(this.selectObject); // } } basicWall(dataList, floor, y, ground_show, color) { //渲染墙体 console.log(dataList, floor, y, ground_show, color); var str for (var i = 0; i < dataList.length; i++) { var arryShape = []; str = dataList[i].path; for (var j = 0; j < str.length; j++) { arryShape.push(new THREE.Vector3(str[j].x, str[j].y, str[j].z)); } var californiaShape = new THREE.Shape(arryShape); var extrudeSettings = { steps: 1, amount: 2, bevelEnabled: false, }; var geometry = new THREE.ExtrudeBufferGeometry(californiaShape, extrudeSettings); var material = new THREE.MeshPhongMaterial({ color: color, depthTest: true }); //材质对象 var mesh = new THREE.Mesh(geometry, material); //网格模型对象 mesh.position.y = 5; mesh.position.x = this.originX; mesh.position.z = this.originZ; mesh.rotateX(-Math.PI / 2); // mesh.rotateZ(Math.PI / 4); floor.add(mesh); } floor.visible = ground_show; this.scene.add(floor); } initNoAndArea(dataList, floor, y, ground_show, color) { const self = this self.slotAreaRegion(dataList, self.slot_area_group, y, ground_show, color); self.initSlotNumber(dataList, self.slot_no_group, y, ground_show, self.mapParams['bg'].slot_number); } initSlotArea(data, floor, y, ground_show, color) { //渲染车位方块 if (!data) return let dataList = data.filter((item) => { return item.slot_name; }) let mesh; for (let i = 0; i < dataList.length; i++) { let arryShape = [] let str = dataList[i].path; for (let j = 0; j < str.length; j++) { arryShape.push(new THREE.Vector3(str[j].x, str[j].y, 0)) } let californiaShape = new THREE.Shape(arryShape); let extrudeSettings = { steps: 1, depth: 0.1, amount: 0.1, bevelEnabled: false, }; let geometry = new THREE.ExtrudeBufferGeometry(californiaShape, extrudeSettings) let material = new THREE.MeshPhongMaterial({ color: color, depthTest: true }); //材质对象 mesh = new THREE.Mesh(geometry, material); //网格模型对象 mesh.name = dataList[i].slot_name; const path = [] dataList[i].path.filter(item => { path.push(item.x); path.push(item.y); path.push(8); }) mesh.userData = { "slot": 'slot', "path": path } floor.add(mesh); } floor.rotateX(-Math.PI / 2); floor.position.x = this.originX; floor.position.z = this.originZ; floor.position.y = y; floor.visible = ground_show; floor.name = 'chewei'; this.scene.add(floor); } initSlotLine(dataList, floor, y, ground_show, color) { //渲染车位线 if (!dataList) return for (var i = 0; i < dataList.length; i++) { var str = dataList[i].path; var geometry = new THREE.Geometry(); for (var j = 0; j < str.length; j++) { geometry.vertices.push(new THREE.Vector3(str[j].x, str[j].y, str[j].z)); } var material = new THREE.LineBasicMaterial({ color: color }); var line = new THREE.Line(geometry, material); line.position.y = y; line.position.x = this.originX; line.position.z = this.originZ; line.rotateX(-Math.PI / 2); floor.add(line); } floor.visible = ground_show; this.scene.add(floor) } getFontLoaderInit (){ this.FontLoader = new THREE.Font(FONT_JSON_DATA); } initSlotNumber(dataList, floor, y, ground_show, color) { //渲染车位号 if (!dataList) return let _this = this; console.log('dataList.length,floor', dataList.length,floor) for (let i = 0; i < dataList.length; i++) { const get_centroid = _this.get_centroid(dataList[i].path) // 生成二维字体模型 var shapes = _this.FontLoader.generateShapes(dataList[i].name, 0.8, 1); var fontGeometry = new THREE.ShapeGeometry(shapes); // // 材质 var fontMaterial = new THREE.MeshLambertMaterial({ color: color, side: THREE.DoubleSide }); // // 绑定盒子模型 fontGeometry.computeBoundingBox(); fontGeometry.center() let FONT = new THREE.Mesh(fontGeometry, fontMaterial); // // x = 0,位置 FONT.position.x = get_centroid[0] + _this.originX; FONT.position.y = get_centroid[1] - _this.originZ; FONT.position.z = 4; FONT.rotateZ(_this.angle(dataList[i].path)); floor.add(FONT) } floor.visible = ground_show; floor.rotateX(-Math.PI / 2); _this.scene.add(floor); } get_centroid(cluster) { let x = 0; let y = 0; // let coord_num = cluster.length; let coord_num = 4; let lat = 0; let lon = 0; // for (let i = 0; i < cluster.length; i++) { for (let i = 0; i < 4; i++) { lat = cluster[i]['x']; lon = cluster[i]['y']; x += lat; y += lon; } x /= coord_num y /= coord_num let m = [x, y] return m } RoadLineSigns(dataList, floor, y, ground_show, color) { if (!dataList) return var str; for (var i = 0; i < dataList.length; i++) { var arryShape = [] str = dataList[i].path; for (var j = 0; j < str.length; j++) { arryShape.push(new THREE.Vector3(str[j].x, str[j].y, str[j].z)) } var californiaShape = new THREE.Shape(arryShape); var geometry = new THREE.ShapeBufferGeometry(californiaShape) var material = new THREE.MeshBasicMaterial({ color: color }); //材质对象 var mesh = new THREE.Mesh(geometry, material); //网格模型对象 mesh.rotateX(-Math.PI / 2); mesh.position.y = y; mesh.position.x = this.originX; mesh.position.z = this.originZ; floor.add(mesh) } floor.visible = ground_show this.scene.add(floor); } slotAreaRegion(dataList, floor, y, ground_show, color) { if (!dataList) return; var str; var mesh; var material = new THREE.MeshBasicMaterial({ color: color }); //材质对象 for (var i = 0; i < dataList.length; i++) { var arryShape = [] str = dataList[i].path; for (var j = 0; j < str.length; j++) { arryShape.push(new THREE.Vector3(str[j].x, str[j].y, str[j].z)) } var californiaShape = new THREE.Shape(arryShape); var geometry = new THREE.ShapeBufferGeometry(californiaShape) mesh = new THREE.Mesh(geometry, material); //网格模型对象 mesh.name = dataList[i].name; const path = [] dataList[i].path.filter(item => { path.push(item.x); path.push(item.y); path.push(8); }) mesh.userData = { "slot": 'slot', "path": path } floor.visible = ground_show floor.add(mesh); } floor.rotateX(-Math.PI / 2); floor.position.y = y; floor.position.x = this.originX; floor.position.z = this.originZ; this.scene.add(floor); } // 计算多个坐标点的中心点(地理坐标系--平面直角坐标系)（用于车位号在车位方块内居中显示） get_centroid(cluster) { let x = 0; let y = 0; // let coord_num = cluster.length; let coord_num = 4; let lat = 0; let lon = 0; // for (let i = 0; i < cluster.length; i++) { for (let i = 0; i < 4; i++) { lat = cluster[i]['x']; lon = cluster[i]['y']; x += lat; y += lon; } x /= coord_num y /= coord_num let m = [x, y] return m } // 计算两点距离 distance(p1, p2) { let dx = Math.abs(p2.x - p1.x); let dy = Math.abs(p2.y - p1.y); let dis = Math.sqrt(Math.pow(dx, 2) + Math.pow(dy, 2)); return dis; } // 确定两点与x轴夹角（选取下标为0、1和1、2两点作比较，选出车位方块长边，根据长边与x轴夹角计算出车位方块相对于x轴的旋转角度，用于设置车位号的旋转，使车位号与车位方块长边保持平行） angle(point) { if (this.distance(point[0], point[1]) > this.distance(point[1], point[2])) { let a = point[0]; let b = point[1]; if (a.x > b.x) { var radian = Math.atan2(a.y - b.y, a.x - b.x); // 返回来的是弧度 } else { var radian = Math.atan2(b.y - a.y, b.x - a.x); // 返回来的是弧度 } // var angle = 180 / Math.PI * radian; // 根据弧度计算角度 return radian; } else { let a = point[1]; let b = point[2]; if (a.x > b.x) { var radian = Math.atan2(a.y - b.y, a.x - b.x); // 返回来的是弧度 } else { var radian = Math.atan2(b.y - a.y, b.x - a.x); // 返回来的是弧度 } // var angle = 180 / Math.PI * radian; // 根据弧度计算角度 return radian; } } // 画细线 drawThinLine(positions) { if (this.thinLine && this.thinLine.geometry) { this.thinLine.geometry.dispose(); this.thinLine.material.dispose(); this.scene.remove(this.thinLine); } if (!positions) return console.log(positions) var geometry = new THREE.LineGeometry(); geometry.setPositions(positions); const material = new THREE.LineMaterial({ color: '#14f408', linewidth: 1, // in pixels dashed: false }); material.resolution.set(window.innerWidth, window.innerHeight) // line this.thinLine = new THREE.Line2(geometry, material); this.thinLine.rotateX(-Math.PI / 2); // this.thinLine.position.x = 300; this.thinLine.position.y = 5; this.thinLine.position.x = this.originX; this.thinLine.position.z = this.originZ; this.scene.add(this.thinLine); } // 画粗线 drawWideLine(positions) { if (this.wideLine && this.wideLine.geometry) { this.wideLine.geometry.dispose(); this.wideLine.material.dispose(); this.scene.remove(this.wideLine); } var geometry = new THREE.LineGeometry(); geometry.setPositions(positions); const material = new THREE.LineMaterial({ color: '#14f408', linewidth: 2, // in pixels dashed: false }); material.resolution.set(window.innerWidth, window.innerHeight) // line this.wideLine = new THREE.Line2(geometry, material); this.wideLine.rotateX(-Math.PI / 2); // this.wideLine.position.x = 300; this.wideLine.position.x = this.originX; this.wideLine.position.z = this.originZ; this.scene.add(this.wideLine); } renderDiv(dataNumber, object) { //浮动窗口 console.log('renderDiv',dataNumber, object) this.box.id = 'label' if (dataNumber === 0) { this.box.remove() this.callbackSlotNo({ slot_no: '', floor_id: '' }) return false } else { document.getElementById('room').appendChild(this.box) } // 获取窗口的一半高度和宽度 var halfWidth = window.innerWidth / 2; var halfHeight = window.innerHeight / 2; // 逆转相机求出二维坐标 // var vector = object.position.clone().project(this.camera); // 修改 div 的位置 // this.box.style.display = 'block' // box.style.left = (vector.x * halfWidth + halfWidth) + 'px' // box.style.top = (-vector.y * halfHeight + halfHeight) + 'px' this.box.style.left = (this.donX + 15) + 'px' this.box.style.top = (this.donY + 15) + 'px' // this.box.innerHTML = "车位号:" + object.name if (object && object.name) { this.box.innerHTML = "车位号:" + object.name this.callbackSlotNo({ slot_no: object.name, floor_id: this.rawOption.floor_id }) } else { this.box.innerHTML = '请勾选车位号' this.callbackSlotNo({ slot_no: '', floor_id: ''}) } } renderPOI(slot_position) { //浮动窗口 console.log('renderPOI',slot_position) this.box.id = 'label' document.getElementById('room').appendChild(this.box) this.box.style.left = (this.donX + 15) + 'px' this.box.style.top = (this.donY + 15) + 'px' this.box.innerHTML = '已选择' this.callbackSlotNo({ slot_no: '', floor_id: this.rawOption.floor_id,slot_position: slot_position}) } //车位点击事件 大头针标记出所选的车位 onMouseDblclick(event) { console.log(event); if((Date.now() - this.touchTime) > 300){ return } // 获取 raycaster 和所有模型相交的数组，其中的元素按照距离排序，越近的越靠前 var intersects = this.getIntersects(event); console.log('intersects',intersects); // 先清除大头针lock(原需求是点击车位号加大头针，所以点击时需先清除大头针再重绘) this.clearSlot('lock') // 清除细线 车位边框 this.drawThinLine() // 获取选中最近的 Mesh 对象 if (intersects.length != 0 && intersects[0].object instanceof THREE.Mesh) { // 判断和上一次点击的车位相同，则清除selectObject，取消背景颜色等状态 if (this.selectObject == intersects[0].object) { this.dataNumber = 0 this.selectObject = intersects[0].object; } else { this.selectObject = intersects[0].object; this.dataNumber = 1 // 根据位置标记大头针 // const point = intersects[0].point // this.initLock({x:point.x - this.originX, y:-point.z+this.originZ, z:point.y}, 'lock') } console.log('this.dataNumber, this.selectObject',this.dataNumber, this.selectObject,) this.renderDiv(this.dataNumber, this.selectObject) this.changeMaterial(this.selectObject); this.render() } else { this.selectObject='' const slot_p = this.getIntersectsPlane(event) // const slot_position = { // x: slot_p.x, // y: slot_p.z, // z: slot_p.y, // } const slot_position = { x: slot_p.x - this.originX, y: slot_p.z + this.originZ, z: 0, } console.log("未选中 Mesh!",slot_position); //先清除大头针后添加大头针标记位置 this.initLock({x:slot_p.x - this.originX, y:-slot_p.z+this.originZ, z:slot_p.y}, 'lock') this.render() this.renderPOI(slot_position) } } /* 获取射线与平面相交的交点 */ getIntersectsPlane(event) { var raycaster = new THREE.Raycaster(); var mouse = new THREE.Vector2(); mouse.x = (event.changedTouches[0].clientX / document.getElementById('room').clientWidth) * 2 - 1; mouse.y = -(event.changedTouches[0].clientY / document.getElementById('room').clientHeight) * 2 + 1; var normal = new THREE.Vector3(0, 1, 0); /* 创建平面 */ var planeGround = new THREE.Plane(normal, 0); /* 从相机发出一条射线经过鼠标点击的位置 */ raycaster.setFromCamera(mouse, this.camera); /* 获取射线 */ var ray = raycaster.ray; /* 计算相机到射线的对象，可能有多个对象，返回一个数组，按照距离相机远近排列 */ var intersects = ray.intersectPlane(planeGround); /* 返回向量 */ return intersects; } changeMaterial(object) { //更换材质 console.log(object, 888888) if (this.dataNumber == 0) { var material = new THREE.MeshBasicMaterial({ color: "#212129", }); this.selectObject = '' } else { var material = new THREE.MeshBasicMaterial({ color: "#161621",// "#14f408", }); if (object.userData && object.userData.path) { this.drawThinLine(object.userData.path) } } object.material = material; } locateSlot(slot_no) { console.log('即将高亮车位号：' + slot_no); this.drawThinLine(); this.scene.traverse(obj => { if (obj.type == "Mesh" && obj.name) { if (slot_no && obj.name == slot_no) { obj.material = new THREE.MeshBasicMaterial({ color: '#161621', side: THREE.DoubleSide }); this.drawThinLine(obj.userData.path) } else { obj.material = new THREE.MeshBasicMaterial({ color: '#212129', side: THREE.DoubleSide }); } } }) } initLock(dataList, imgName) { //显示车位大头针 this.createLockTextureMesh(dataList, new THREE.Group(), imgName) } initCar(dataList, imgName, offset_x, offset_y) { //显示车辆 this.clearSlot(imgName) this.createTextureMesh(dataList, new THREE.Group(), imgName) } createLockTextureMesh(dataList, floor, imgName) { // var zoom = parseFloat(loaclInfo.map_info.zoom) var geometry = new THREE.PlaneGeometry(2, 2, 1, 1); //几何体创建纹理坐标 console.log(dataList, 'local_map_id一致') geometry.vertices[0].uv = new THREE.Vector2(0, 0); geometry.vertices[1].uv = new THREE.Vector2(1, 0); geometry.vertices[2].uv = new THREE.Vector2(1, 1); geometry.vertices[3].uv = new THREE.Vector2(0, 1); var texture = THREE.ImageUtils.loadTexture( "../images/" + imgName + ".png", null, function (t) { } ); var material = new THREE.MeshBasicMaterial({ map: texture, transparent: true, side: THREE.DoubleSide }); var mesh = new THREE.Mesh(geometry, material); mesh.position.set(dataList.x + this.originX, 15, -dataList.y + this.originZ) // mesh.position.z = 2 mesh.rotateX(-Math.PI / 2) mesh.userData = { "slot": imgName, } console.log(mesh, 'lock') floor.add(mesh) this.scene.add(floor); } createTextureMesh(dataList, floor, imgName, offset_x, offset_y) { // var zoom = parseFloat(loaclInfo.map_info.zoom) var geometry = new THREE.PlaneGeometry(2, 2, 1, 1); if ((dataList.local_map_id && this.rawOption.floor_id == dataList.local_map_id) || !dataList.local_map_id) { //几何体创建纹理坐标 geometry.vertices[0].uv = new THREE.Vector2(0, 0); geometry.vertices[1].uv = new THREE.Vector2(1, 0); geometry.vertices[2].uv = new THREE.Vector2(1, 1); geometry.vertices[3].uv = new THREE.Vector2(0, 1); var texture = THREE.ImageUtils.loadTexture( "../../images/" + imgName + ".png", null, function (t) { } ); var material = new THREE.MeshBasicMaterial({ map: texture, transparent: true, side: THREE.DoubleSide }); var mesh = new THREE.Mesh(geometry, material); console.log(dataList, 1111) mesh.position.set(dataList.x + this.originX, 15, -dataList.y + this.originZ) mesh.rotateX(-Math.PI / 2) if (dataList.angle) { let piVal = (dataList.angle - 90) * (Math.PI / 180); mesh.rotateZ(piVal); } mesh.userData = { "slot": imgName } console.log(mesh) floor.add(mesh) this.scene.add(floor); // } else { // return false } } getIntersects(event) { // 获取鼠标点击的物体,如果要获取鼠标点击的平面(非物体)的坐标,见mapLink.js的getIntersects方法 // 声明 raycaster 和 mouse 变量 var raycaster = new THREE.Raycaster(); var mouse = new THREE.Vector2(); // 通过鼠标点击位置,计算出 raycaster 所需点的位置,以屏幕为中心点,范围 -1 到 1 mouse.x = (event.changedTouches[0].clientX / document.getElementById('room').clientWidth) * 2 - 1; mouse.y = -(event.changedTouches[0].clientY / document.getElementById('room').clientHeight) * 2 + 1; //通过鼠标点击的位置(二维坐标)和当前相机的矩阵计算出射线位置 raycaster.setFromCamera(mouse, this.camera); // 获取与射线相交的对象数组，其中的元素按照距离排序，越近的越靠前 var children_ = [] this.scene.traverse(obj => { if (obj.type == "Mesh" && obj.userData.slot == 'slot') { obj.material = new THREE.MeshBasicMaterial({ color: '#212129', }); children_.push(obj) } }) var intersects = raycaster.intersectObjects(children_); //返回选中的对象 return intersects; } lineNotClosed(dataList, floor, z, ground_show, color) { //渲染线 不闭合类 if (!dataList) return // 5车道分道线 6减速带 7路标 for (var i = 0; i < dataList.length; i++) { var str if (dataList[i].data_type == 1001) { str = JSON.parse(dataList[i].points) var geometry = new THREE.Geometry(); for (var j = 0; j < str.length; j++) { geometry.vertices.push(new THREE.Vector3(str[j].x, str[j].y, z)); } var material = new THREE.LineBasicMaterial({ color: color, linewidth: 35 }); var line = new THREE.Line(geometry, material); line.position.z = z floor.visible = ground_show floor.add(line) this.scene.add(floor) } } } start_car(dataList, loaclInfo, index, floor, z, ground_show) { // 创建导航轨迹 if (!dataList) return var vector = [] var zoom = parseFloat(loaclInfo.map_info.zoom) var offset_x = parseFloat(loaclInfo.map_info.offset_x) var offset_y = parseFloat(loaclInfo.map_info.offset_y) for (var i = 0; i < dataList.length; i++) { if (loaclInfo.local_map_id[index] === dataList[i].mapId) { vector.push(new THREE.Vector3((parseFloat(dataList[i].xPos) + offset_x) * zoom, (parseFloat(dataList[i].yPos) + offset_y) * zoom, z)) } } if (vector.length == '') { return false } // var curve = new THREE.CatmullRomCurve3([ // new THREE.Vector3(0, 0, 0), // new THREE.Vector3(100, 500, 0), // new THREE.Vector3(500, 500, 0), // new THREE.Vector3(500, 800, 0) // ], false /*是否闭合*/ ) var curve = new THREE.CatmullRomCurve3(vector, false) var progress = 0; var tubeGeometry = new THREE.TubeGeometry(curve, 64, 15, 100, false); var textureLoader = new THREE.TextureLoader(); // var texture = textureLoader.load('../../../assets/libs/map/track.png'); // 设置阵列模式为 RepeatWrapping texture.wrapS = THREE.RepeatWrapping texture.wrapT = THREE.RepeatWrapping // 设置x方向的偏移(沿着管道路径方向)，y方向默认1 //等价texture.repeat= new THREE.Vector2(20,1) texture.repeat.x = 20; var tubeMaterial = new THREE.MeshPhongMaterial({ map: texture, transparent: true, }); var tube = new THREE.Mesh(tubeGeometry, tubeMaterial); tube.position.z = z //scene.add(tube) floor.add(tube) floor.visible = ground_show this.scene.add(floor) nitcar() function nitcar() { requestAnimationFrame(nitcar); texture.offset.x -= 0.02 if (progress > 1.0) { return; } progress += 0.0005; if (curve) { let point = curve.getPoint(progress); let point_car = curve.getPoint(progress + 0.0003); if (point && point.x) { // cubeBox.position.set(point.x, point.y); // cubeBox.lookAt(point_car.x, point_car.y,z); // cubeBox.rotateY(Math.PI /2); } } } } lambertBox() { var cubeGeometry = new THREE.BoxGeometry(10, 10, 10); var cubeMaterial = new THREE.MeshLambertMaterial({ color: 0x00ffff }); let cube = new THREE.Mesh(cubeGeometry, cubeMaterial); cube.position.x = 5; cube.position.y = 5; cube.position.z = -5; //告诉立方体需要投射阴影 cube.castShadow = true; this.scene.add(cube); }}export default basicThree最后在模块文件中，开始获取数据动态渲染吧
js复制代码 import basicThree from '@/utils/stationMap/map_type'; let threeJs = null ; let dataList = []; threeJs = new basicThree({callback: this.callbackSlotNo }); threeJs.initModel(); ... //获取数据后创建楼层 threeJs.initMap(dataList[this.theFloor], 2, mapParams, this.init, this.offset_x, this.offset_y);由于需要渲染的数据太多，在以前的老 vue2 项目上继续开发就会遇到问题，升级到 vue3 吧又会出现兼容性问题，我现在进退两难，最后我决定求稳，不升级框架了，因为我也没时间去测试和把老业务全搞过来，太需要时间了，所以，求稳吧，逐步优化性能。这就用到了，我之前写的另一篇文章，如何进行前端项目优化的一步一步操作。除了及时销毁变量和定时器，少用闭包之外，来看看我的另一篇文章.
